Well-Void Type FR/4C

Posted on April 28, 2015 by - Uncategorised

Description

Well-void was designed specifically to be a versatile high strength-low cost bored pile liner for the construction industry.

sendSpec

Applications

Well-Void Type 3C and 20-1C have a unique profile designed for maximum strength to weight ratio and to provide an economical duct.  Applications include:-

Permanent pile liners, wells and caissons

Prevents seepage and fall-in, simplifies construction and reduces preparation time.  Resists the distortions caused by the hydrostatic pressures of concrete.

Void formers in concrete

Saves weight and is economical to install in bridges and concrete structures, will not leach from surrounding concrete, grout proof end caps available.

Column forming in buildings

Eliminates costly traditional methods of column forming.  Pre-cut lengths – just position and pour.

Sizes

All diameters from 125mm (5”) up to 1524mm (60”)

Features

icon_8

The unique deep roll-formed internal corrugations which guarantees the maximum strength to weight ratio.

icon_9

Resists the distortions caused by the hydrostatic pressures of concrete.

icon_7

Ensures a first class sure bond to concrete.

icon_6

Socketed lockseam which minimises any restriction in the annulus during pile case retrieval.

icon_10

Versatile high strength-low cost.

icon_8

Considerable material cost savings Due to the reinforcing effect of the 4-ply lockseam.

Click download to view technical specification as a PDF.

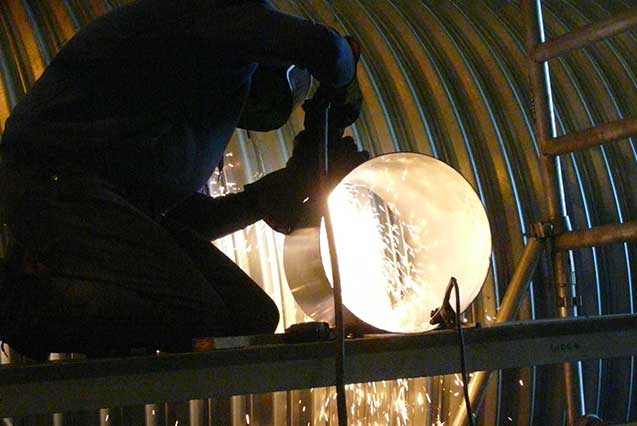

Specialised Products

Posted on February 17, 2015 by - Uncategorised

For nearly 50 years Wells have regularly been asked to perform the extraordinary.  Client based projects have been progressed through conception, design and pre-production to full scale manufacture. Whether it be for a one-off, short-run or long-term requirement.

sendSpec

Applications

Wells have innovative solutions for a wide variety of industries, including;

  • Nuclear
  • Pharmaceutical
  • Food
  • Brewing
  • Power
  • Railways
  • Farming
  • Mining

If you have an idea, if your imagination has been fired by what you have seen on our web-site, then Wells can offer you a unique solution.

Features

icon_8

In house design team

icon_9

Nearly 50 years of manufacturing bespoke items

icon_7

Quick availability

icon_6

Giving our customers flexibility

icon_10

Cost effective

icon_8

Bespoke sheet metal department

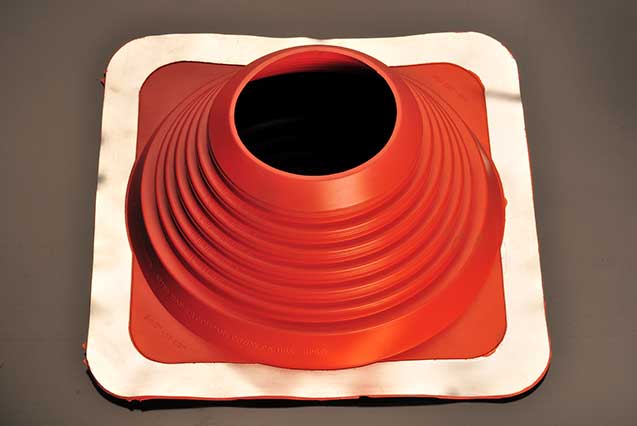

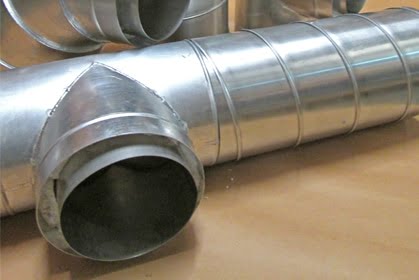

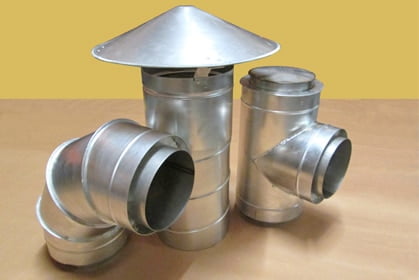

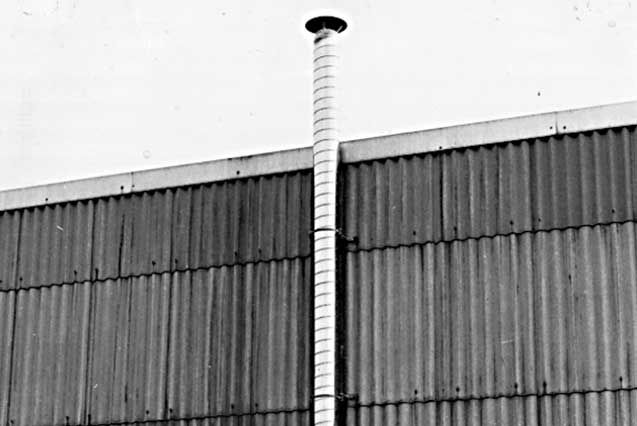

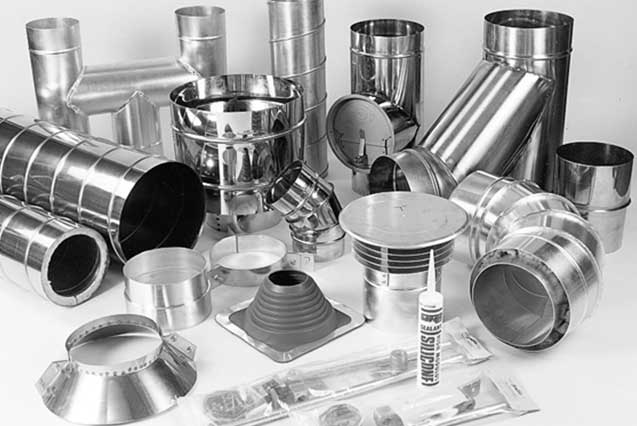

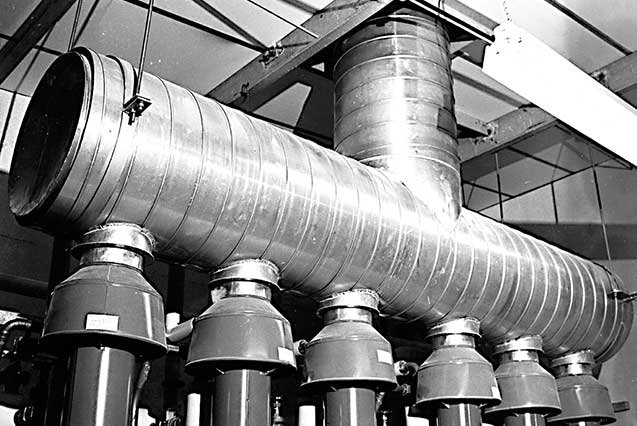

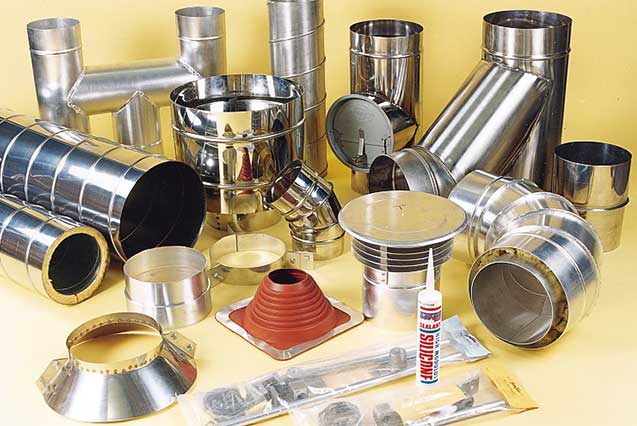

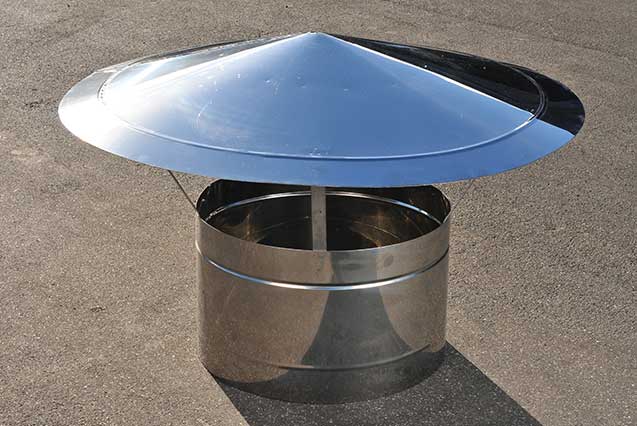

Flue Systems

Posted on February 17, 2015 by - Uncategorised

We have a comprehensive range of both commercial and domestic flue systems which have been tried and tested nationwide for nearly 50 years.  This has earned Wells a reputation for its quality, performance and ability to design bespoke systems.

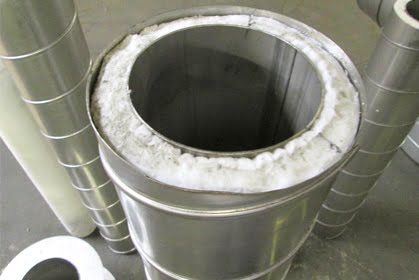

Both our Single/Twin wall flue systems have been awarded a CE Marking approval, validating both their quality and durability.

Materials available

Aluminium
Stainless Steel 430
Stainless Steel 304
Stainless Steel 316

sendSpec

Applications

Domestic, Industrial and Commercial for Gas, Oil or Multi-Fuel

Sizes

A major feature of the Wells System is the availability of long tube lengths – up to 10.0 metres available in one section.

Stock diameter range (inches)

3″ • 4″ • 5″ • 6″ • 7″ • 8″ • 9″ • 10″ • 12″

Any standard diameter up to 86″ (2200mm) can be manufactured .

Tube lengths

3.0m • 4.5m and 6.0m standard stock lengths.

Any length or diameter can be manufactured to order.

Features

icon_8

Both our Single/Twin Wall Flue Systems have been tested by BSRIA and have been awarded a CE Certificate.

icon_9

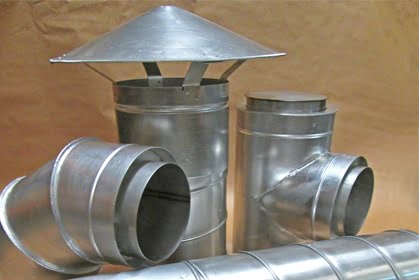

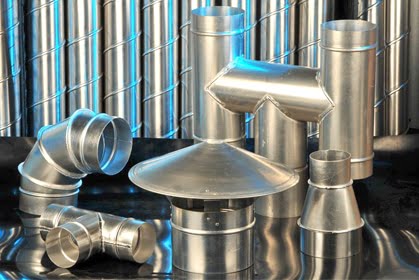

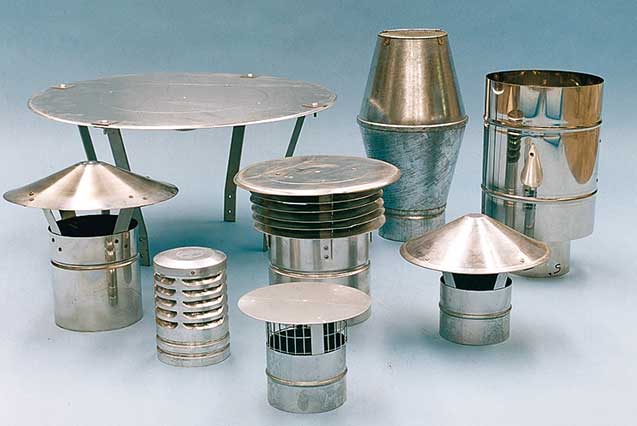

The Wells Spiral flue system features a unique range of standard and tailor-made component header sections, manifolds and assemblies which can be rapidly manufactured to your exact dimensions.

icon_7

Ability to design bespoke systems.

icon_6

Available in any length.

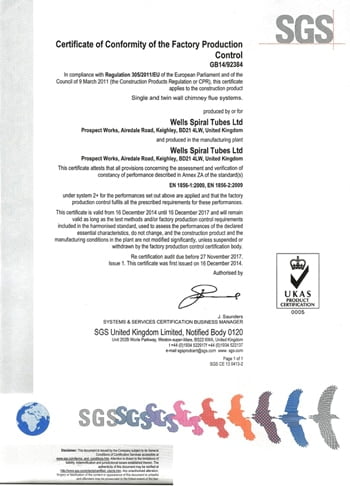

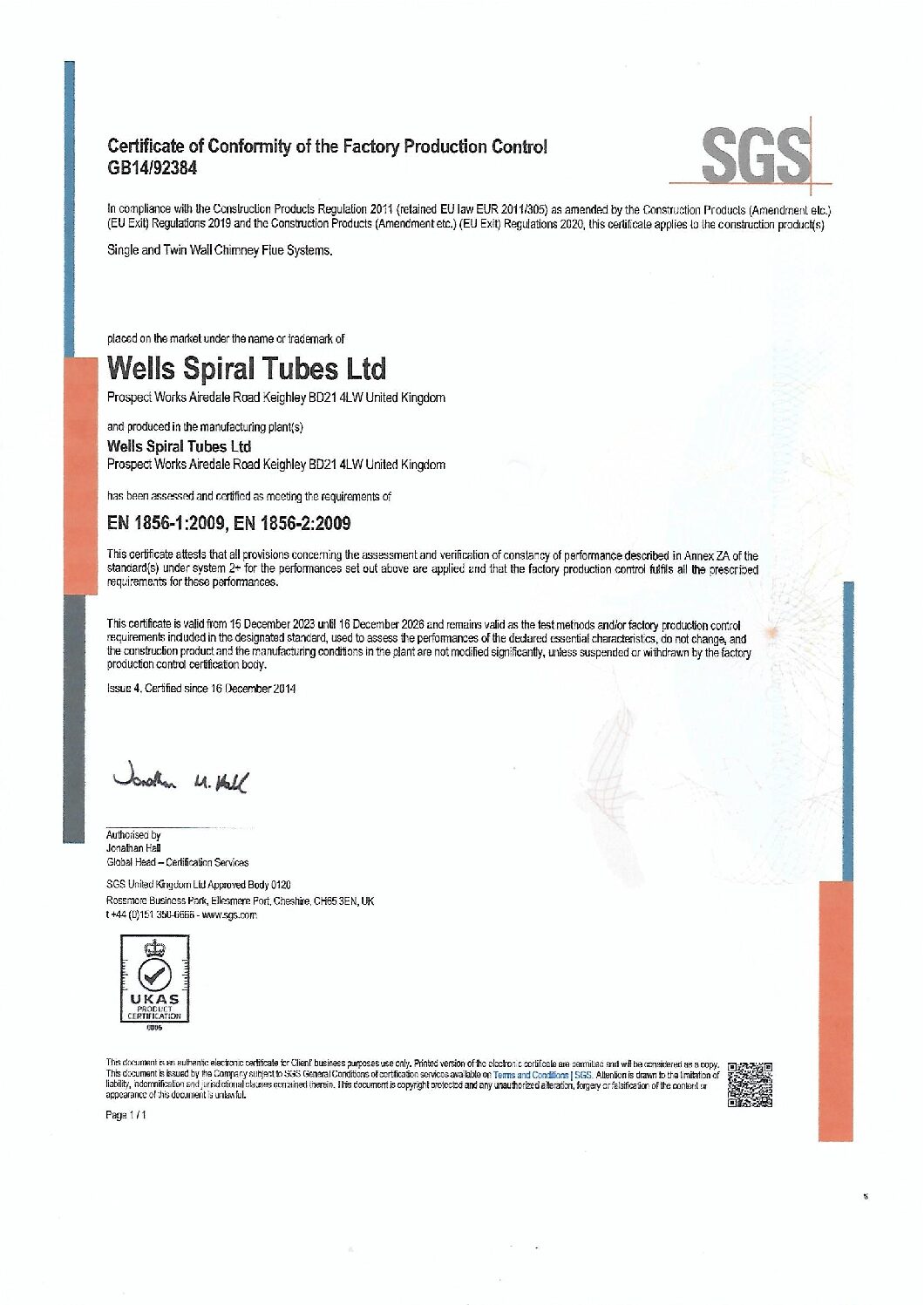

* CE CERTIFICATE AWARDED TO WELLS *

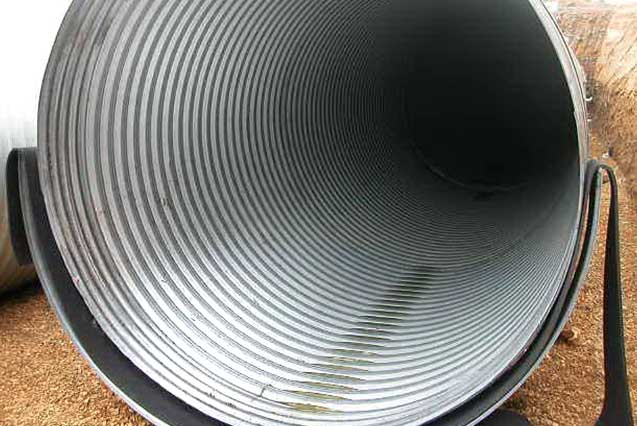

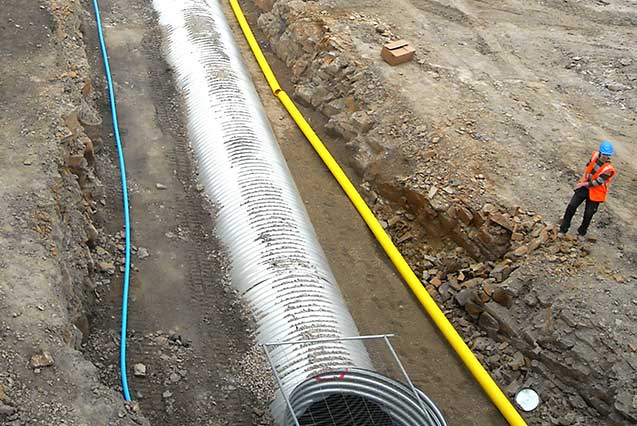

Culverts & Outfall Pipes

Posted on August 21, 2014 by - Uncategorised

Well-Void is widely used by Internal Drainage Boards, National Rivers Authorities, Civil Engineers, Builders and Developers, Transport Boards and National Utilities, and private land owners.

sendSpec

Applications

Well-Void circular drainage culverts are high-strength, low-cost steel tubes ideal for crossing streams, replacing bridges, creating access tracks, enclosing ditches, storm water storage tanks, etc.  They are high rigidity yet lightweight also makes Well-Void ideal for storage bins and silo’s.racks, Storm water attenuation tanks etc.



Sizes

Material Galvanised steel to BS2989
Aluzinc Coated steel to BS6830.
Thickness (mm)
1.2 • 1.5 • 2.0mm.

Standard Diameter (mm)
150 • 200 • 250 • 300 • 350 • 400 • 450 • 500 • 550 • 600 • 660 • 700 • 760 • 800 • 860 • 900 • 960 • 1000 • 1120 • 1200 • 1250 • 1320 • 1400 • 1500 • 1600 • 1800 • 1900 • 2000 • 2100 • 2200

Features

icon_8

Considerable material cost savings Due to the reinforcing effect of the 4-ply lockseam.

icon_9

Lightweight-high strength steel

icon_7

Easier and cheaper to install than concrete

icon_6

Full load tested by ADAS (Maff)

icon_10

Wide choice of diameter and material

icon_8

Designed and manufactured on site

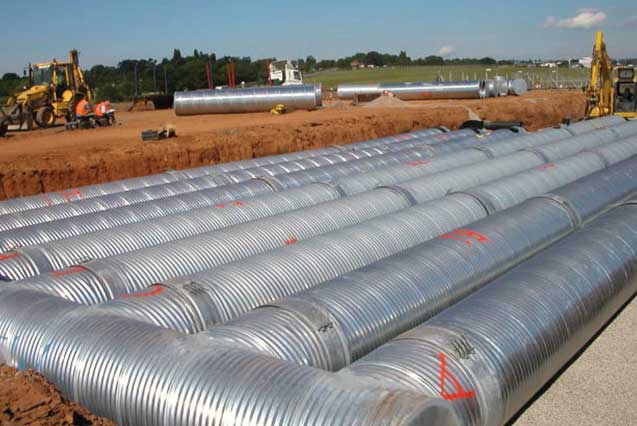

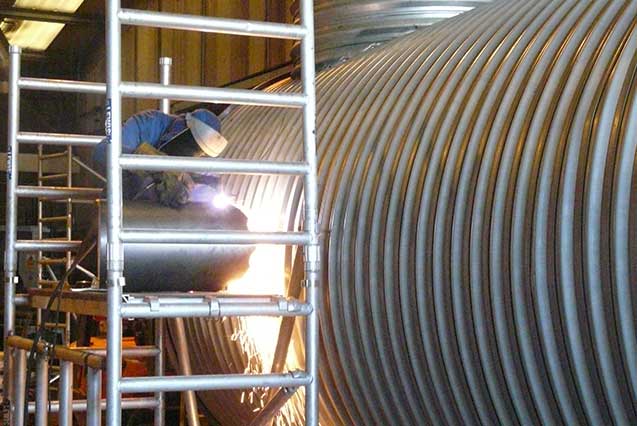

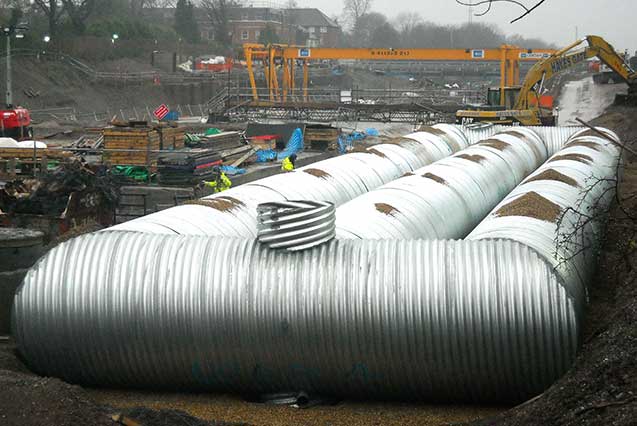

Storm Water Attenuation

Posted on August 21, 2014 by - Uncategorised

Underground storm water storage tanks are becoming increasingly important as Water Authorities often recommend that new developments have their own storage water tank systems.

Here at Wells we have been both designing and manufacturing these systems for nearly 50 years.

sendSpec

Applications

The increased run-off of surface water from large developments, car parks etc. can be many times the capacity of existing sewers and water courses. An outlet water management system is essential and the Well-Void Extra Plus culvert stormwater storage tank system offers the simplest, most versatile and most cost effective solution to the problem. Any design configuration can be accommodated including manholes, inlets, outlets, end plates, elbows and flanged tube connectors. All pre-fabrication is undertaken in our factory for simple on-site installation

Sizes

Up to 2.2m diameter

Features

icon_8

Lightweight-High strength

icon_9

Well-Void tanks can normally be fabricated and delivered within a few weeks.

icon_7

Unique jointing system

icon_6

Considerable material cost savings Due to the reinforcing effect of the 4-ply lockseam.

icon_10

In house design and support team

icon_8

Economic storage system

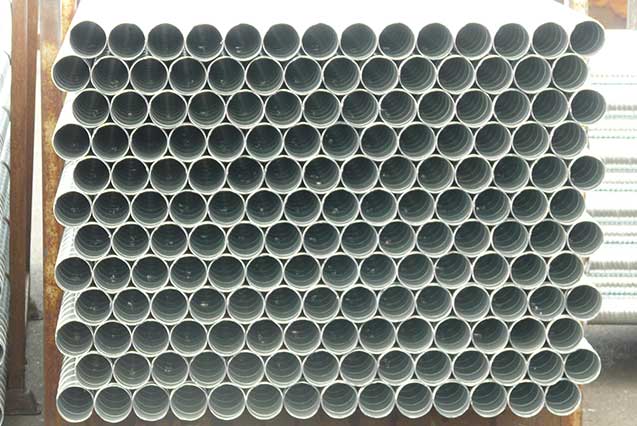

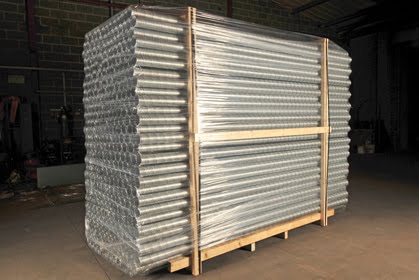

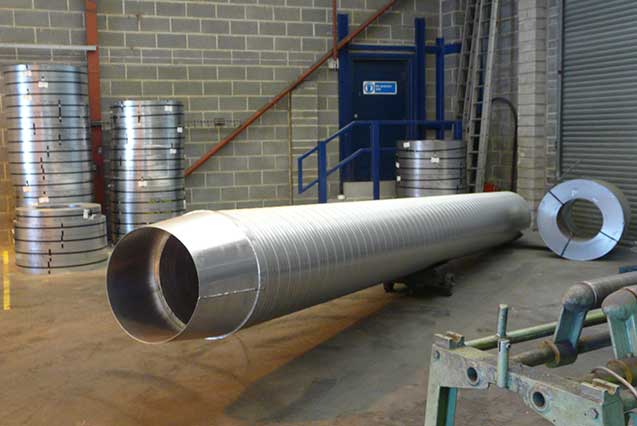

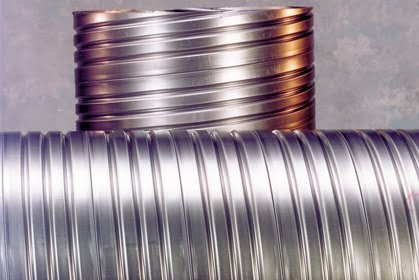

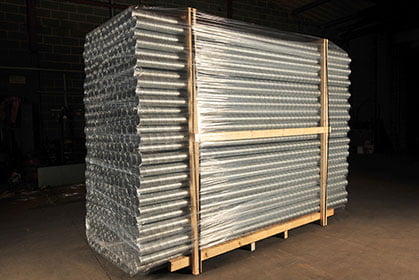

Well Void Tube

Posted on August 21, 2014 by - Uncategorised

adobe_pdf_file_icon

You can download our Well Void Tube and Oval Well Void tube technical specification as a PDF

DESCRIPTION

Wells Spiral Tubes are one of the only manufacturers of this product in the UK.  As we are able to manufacturer our own tube and do not import, this enables us to offer our customers any length of tube required thus eliminating waste.  We can offer a wide range of diameters starting from 40mm – 1524mm (please download one of our Well Void PDF leaflets for any technical information on this product).

Well Void was designed specifically to be a versatile high strength-low cost bored pile liner for the construction industry.  These tubes can be connected to a trail of pipes securing by using our screwed couplers, these couplers engage over the corrugation helix.

sendSpec

Applications

Well Void Type tube have a unique profile designed for maximum strength to weight ratio and to provide an economical duct.  Applications include:-

Permanent pile liners, wells and caissons

Prevents seepage and fall-in, simplifies construction and reduces preparation time.  Resists the distortions caused by the hydrostatic pressures of concrete.

Void formers in concrete

Light weight and is economical to install in bridges and concrete structures, will not leach from surrounding concrete, grout proof end caps available.

Column forming in buildings

Eliminates costly traditional methods of column forming.  Pre-cut lengths – just position and pour.

Sizes

Well Void FR tube also available in ovalised

Diameters from 40mm – 130mm (any length)

3C Type tube

All diameters from 125mm (5”) up to 1524mm (60”)

Features

icon_8

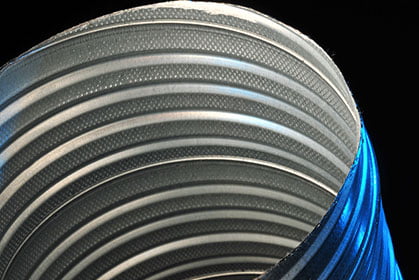

The unique deep roll-formed internal corrugations which guarantees the maximum strength to weight ratio.

icon_9

Resists the distortions caused by the hydrostatic pressures of concrete.

icon_7

Ensures a first class sure bond to concrete.

icon_6

Socketed lockseam which minimises any restriction in the annulus during pile case retrieval.

icon_10

Versatile high strength-low cost.

icon_8

Considerable material cost savings due to the reinforcing effect of the 4-ply lockseam.

Void Formers

Posted on August 21, 2014 by - Uncategorised

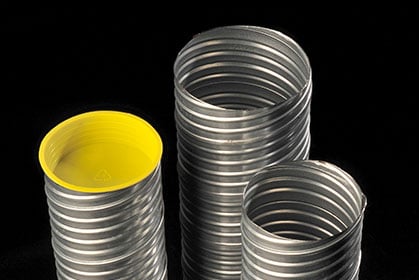

Where required tubes can be supplied with sleeve socket couplers. Stop-end caps or coned ends are generally supplied pre-fixed and sealed to tube ends to prevent the ingress of concrete.

sendSpec

Applications

Well-Void Superlite void formers are ideal as a low-cost, light weight, non-porous cell former within concrete bridge decks and can also be used as column formers, test caps and bolt boxes. Standard Well-Void tubing is used together with a range of flat and coned ends. A full fabrication service is available to suit any requirements.

Sizes

Up to 2.2m diameter, any length up to 8m.

Features

icon_8

A specifically engineered product designed to meet a range of construction industry requirements.

icon_9

Maximum strength to weight ratio.

icon_7

Resist distortion caused by the hydrostatic pressures of concrete.

icon_6

High strength-low cost.

icon_10

Considerable material cost savings Due to the reinforcing effect of the 4-ply lockseam.

icon_8

Versatile Product.

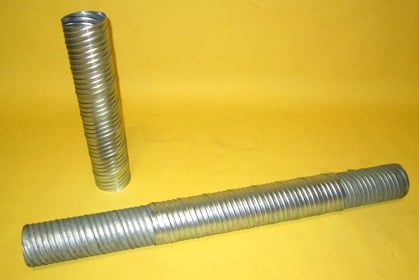

Tendon Sheathing

Posted on August 21, 2014 by - Uncategorised

Description

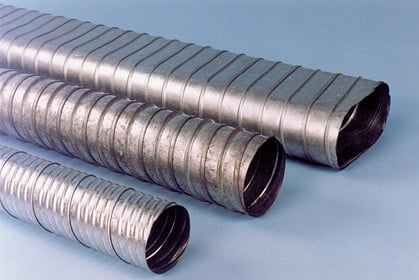

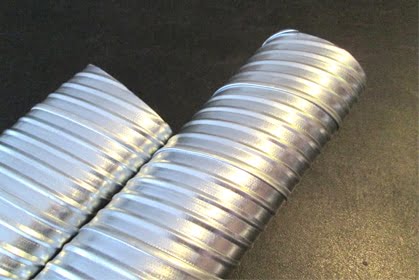

Well-Void Type FR tendon sheathing is a unique range of small diameter corrugated tubing.

Well-Void sheathing can also be supplied in a range of flat-oval sizes for applications with grouting space restrictions.

A choice of external coupling sleeves are available:-

Screw couplers

Engage over the corrugation helix. Generally 300mm long.

Push couplers

Provide a central swage stop to ensure an even joint. Generally 100mm long.

Both couplers require on-site grout sealing.

sendSpec

Applications

Well-Void Type FR tendon sheathing is suitable for pre-stressed concrete bridges, floors etc., and is also used in cut-lengths as dowel pocket formers in pre-cast concrete structures.

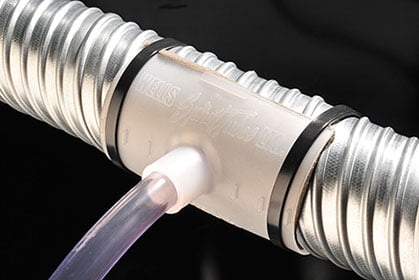

The sheathing can also be delivered pre-bent to most desired radius or curvature.  Also available are standard grout saddles and gaskets, grout hose and heat shrink sleeve seals.

Sizes

Well-Void Type FR is available from 40mm – 125mm

Well-Void Flat Oval is available from 50mm x 25mm up to 160mm x 80mm, but any sizes between these measurements can be achieved on request.

Features

icon_8

Well-Void sheathing is manufactured from standard 0.4mm or 0.5mm steel making Well-Void far stronger than other alternatives with up to 100% more steel.

icon_9

The roll formed external corrugations increase rigidity and ensure a first class bond to concrete.

icon_6

The extra strength makes it less susceptible in transit and site damage.

icon_10

Allows greater unsupported spans to be made saving support materials and reducing fixing time.

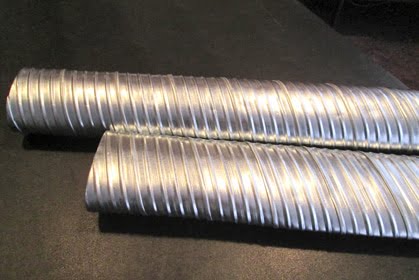

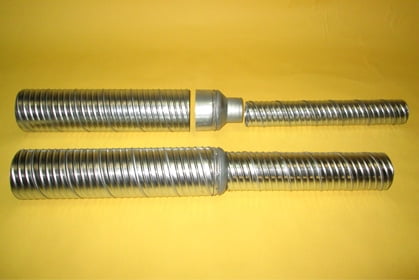

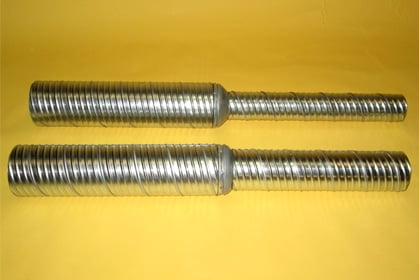

Screw and Push Couplers

Posted on August 21, 2014 by - Uncategorised

A choice of external and internal coupling sleeves are available and are used to connect two tubes together.  Wells has also independently designed a reducing coupler which enables various diameter of tubes to be joined.

Screw couplers

Engage over the corrugation helix. Generally 300mm long.

Push couplers

Provide a central swage stop to ensure an even joint. Generally 100mm long.
Both couplers require on-site grout sealing.

sendSpec

Applications

The Screw coupler is placed on the outside of the tube and is screwed on.

The Push coupler is placed on the inside of the tube and provides a good push in fit.

Features

icon_8

Enabling you to connect two tubes together.

icon_9

Quick and easy to fit.

icon_7

Versatile.

icon_6

Neat finish.

icon_10

High strength-low cost.
