Wellsafe Gasket System

DESCRIPTION

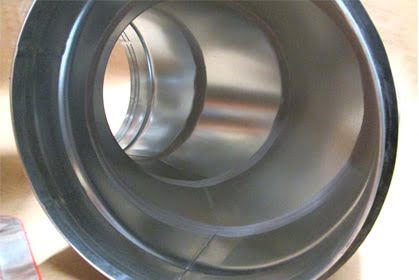

Wellsafe is a range of EPDM rubber gaskets.

Its unique triple-lipped profile ensures a perfect air-tight seal to enable fast-track installation and eliminating conventional seals, mastic and tapes.

Type approved to DW142 high pressure leakage class D and withstands positive pressure up to 3000 Pa (300mm WG) negative pressures down to 5000 Pa (500mm WG)

sendSpec

Applications

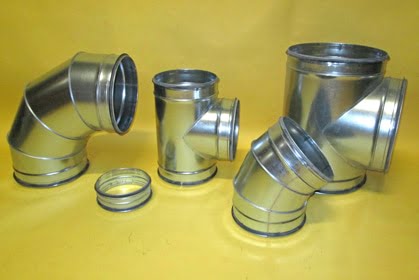

Wellsafe EPDM rubber gaskets can be applied to any standard galvanised, aluminium or stainless steel circular fitting from the full Wells-Vent and Wells-Twin ductwork range.

Sizes

Diameters from 80mm up to 1000mm.

Features

Available on any standard circular fitting

Perfect air tightness

Reduces installation time

Resists temperature variations and rough handling on site

Remains adjustable after installation

Environmentally safe to use – no solvent compounds

Technical resource

Established in 1967 Wells are one of the oldest and biggest British Independents in the business and offer by far the widest range of standard and tailor-made spiral tubes in Europe. Our fourteen tube manufacturing machines enable us to produce spiral tubing in mild steel, galvanised, aluzinc, aluminium and stainless steel as standard in diameters from 41mm up to 2200mm, and in gauges from 0.4mm up to 2.5mm. This facility is backed up by an integral sheet metal work fabrication unit employing the latest CAD/CAM plasma techniques. We believe this capacity to be unrivalled in Europe, and our speed, quality of manufacture, delivery and reputation are unequalled by anyone.
